Product Details

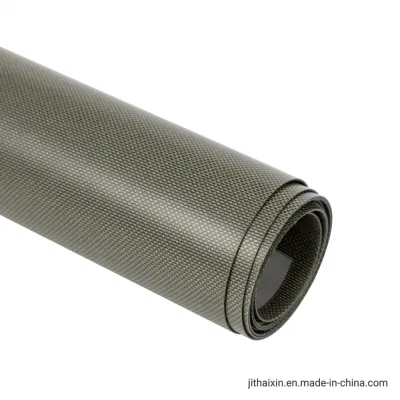

TPU Coated Fabric 840d Nylon Both Sides Coated with TPU

Applications: Waterproof Bag/ Inflatable Boat…Airtight Product
Style: TPU Laminated
Type: Tarpaulin

Share:

Product Description

Origin
China
Pattern
Plain
Usage
Bag, Lining, Military, Tent, Umbrella, Curtain
Color
Customized
HS Code
5901101010
Material
TPU+Nylon
Specification
50 meters per roll
Gram Weight
550-600GSM
Trademark
Jithaixin/customized
Feature
Waterproof, Hf Weldable, UV Resistance, Long Life
Model NO.
UT840
Lead-Time
10 Days
Production Capacity
100000 Meters Per Month
Transport Package
Knitting Bag+PE Foam+Hard Tube
Supply Type
Make to Order
Structure
Fabric Form
Width
58/60"
Package Size
1.51cm * 20.00cm * 20.00cm
Package Gross Weight
1900.000kg

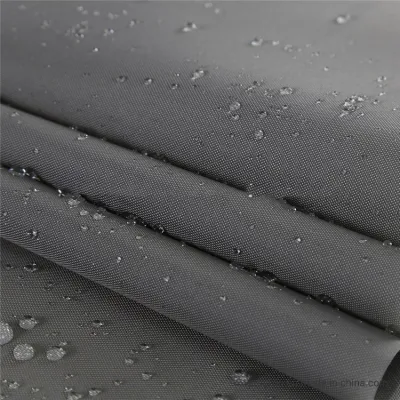

There are 3 layers in this airtight and waterproof TPU coated 840D nylon oxford farbic.

The first layer is water repellent, it makes the surface of the fabric waterproof.

The middle one is basic fabric. It's 840D nylon oxford fabric with excellent tearing and tensile strength.

The bottom layer is TPU Film. It makes the fabric to be completely waterproof and airtight.

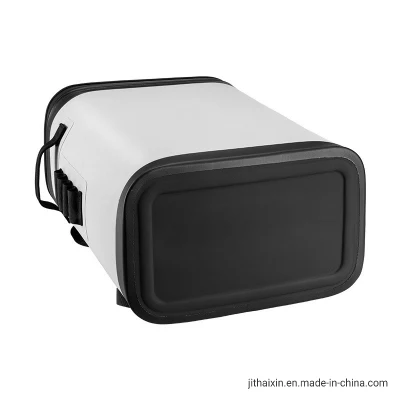

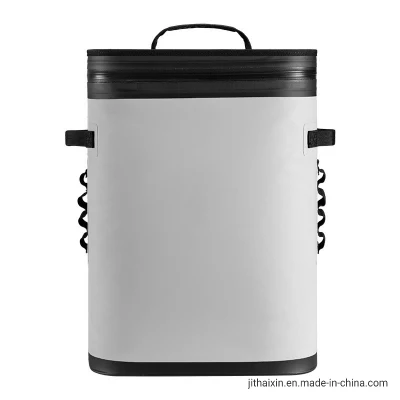

 This  waterproof and inflating TPU tarpaulin could be widely used in coolers, inflating boat, life raft, oil tank, water tank,water bucket, water bladder, Oxygen chamber, inflatable jack, airbag… etc.

The application of TPU is as an environmental friendly replacement of PVC, so this TPU tarpaulin could be used in anywhere is using PVC tarpaulin.

.

The first application of TPU is as an environmental friendly replacement of PVC, so this TPU waterproof fabric could be used in
nywhere is using PVC fabric.




Product Description
Specification Basic Fabric Material 100% Nylon oxford fabric
Yarn Count 840D
Width 155CM

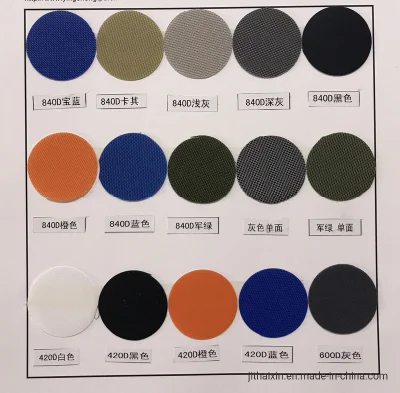

Color Yellow, blue,dark blue,grey, dark grey,black,as per customers' demand
TPU Color Transparent
Type Ester
Total Weight  680±20g/m²
Total Thickness 0.65±0.02MM
Width of End Fabric 147CM
Pattern Both sides coated with TPU
Delivery Detail The delivery time will be about 10-28 days after received deposit.
Packaging Details Hard paper pipe+PE bag, as per customers' demand
Advantages of TPU Fabric 1)  Super airtightness for inflatable products
2) Outstanding hydrolysis resistance ,abrasion resistance, oil resistance and ageing resistance
3) High tensile strength and tearing strength
4) Completely waterproof
5) Easy to Weld, our TPU coated fabric & TPU laminated fabric are easy to be welded by high frequency machines, heat machines, hot air machines, they are even could be welded by iron and PE bag sealing machines.
6) Excellent low temperature flexibility, could be doubled up under -55ºC without causing cracks.
7) Environmentally friendly and non-toxic, biodegradable, it could be decomposed by microorganism within 3-5 years when buried.
8) Soft and smooth hand feeling
