Product Details
Product Description
High strength, excellent quality stability and self-cleaning of surface, anti-aging and various weather resistance
performance Material: PVC and polyester yarn base cloth
Pattern:Laminated and coat Regular Weight:350gsm~1500gsm
Different thickness Regular Polyester:200D*300D/ 500D 9*9/500D 18*17/, etc Width:1.0M-1.83M
Temperature Resistance: -30ºC-70ºC
Flame Retardant: B1, B2, M1, M2, NFPA-701, CAPI-84 Optional Finishing:Glossy,matt, semi-matt
Eco Friendly: 6P free or REACH & RoHs compliance
Customized product solutions will be offered according to the actual needs of customers.
| Product Process | Laminated | Laminated | Coated | Coated | Coated | Coated | Coated | Coated | |
| Base Fabric-Polyester | 500D 9x9 | 1000D 14x14 | 840D 18x18 | 500D 18x17 | 1000D 20x20 | 1000D 23x23 | 1000D 30x30 | 1300D 30x32 | |
| Surface | Glossy/Matte/Semi-gloss /Embossing | ||||||||
| Total Weight | 440gsm | 680gsm | 550gsm | 610gsm | 650gsm | 750gsm | 900gsm | 1250gsm | |
| Tensile Strength ( N/5cm) | Warp | ≥1200 | ≥1800 | ≥2400 | ≥1500 | ≥2800 | ≥3000 | ≥4500 | ≥5500 |
| Weft | ≥1000 | ≥1500 | ≥2000 | ≥1200 | ≥2500 | ≥2700 | ≥4000 | ≥5000 | |
| Tearing Strength (N/5cm) | Warp | ≥140 | ≥250 | ≥300 | ≥200 | ≥280 | ≥350 | ≥550 | ≥750 |
| Weft | ≥120 | ≥200 | ≥260 | ≥180 | ≥250 | ≥300 | ≥450 | ≥600 | |
| Adhesion Strength ( N/5cm) | >60 | >80 | >90 | >80 | >100 | >100 | >110 | >120 | |
| Temperature Resistance | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | |

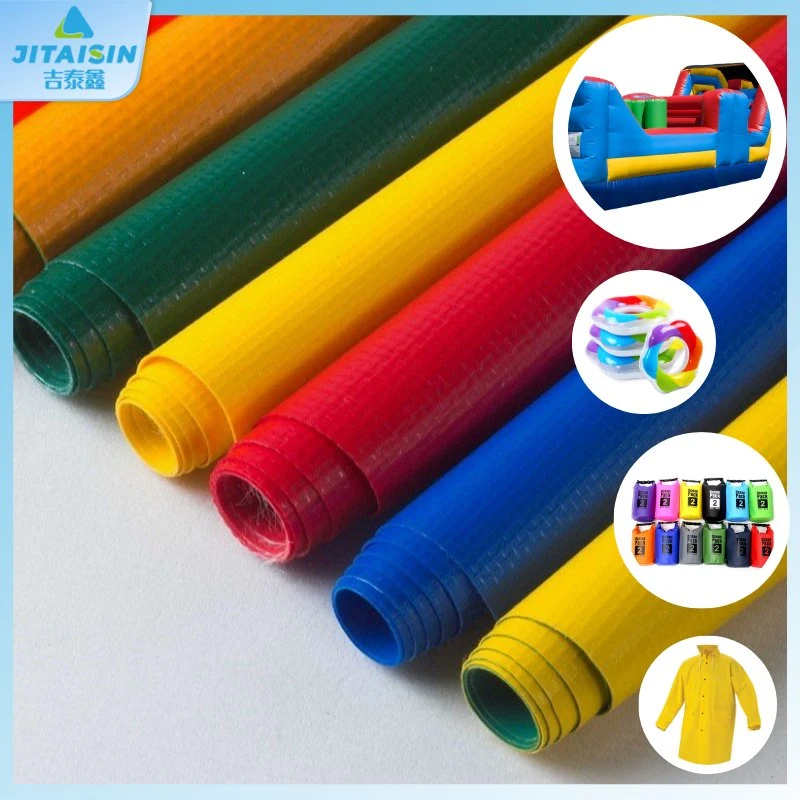

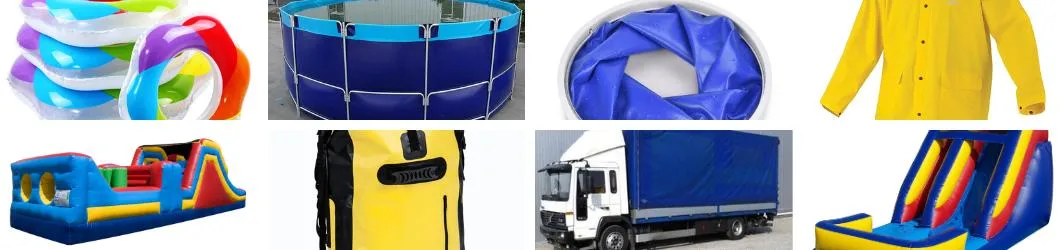

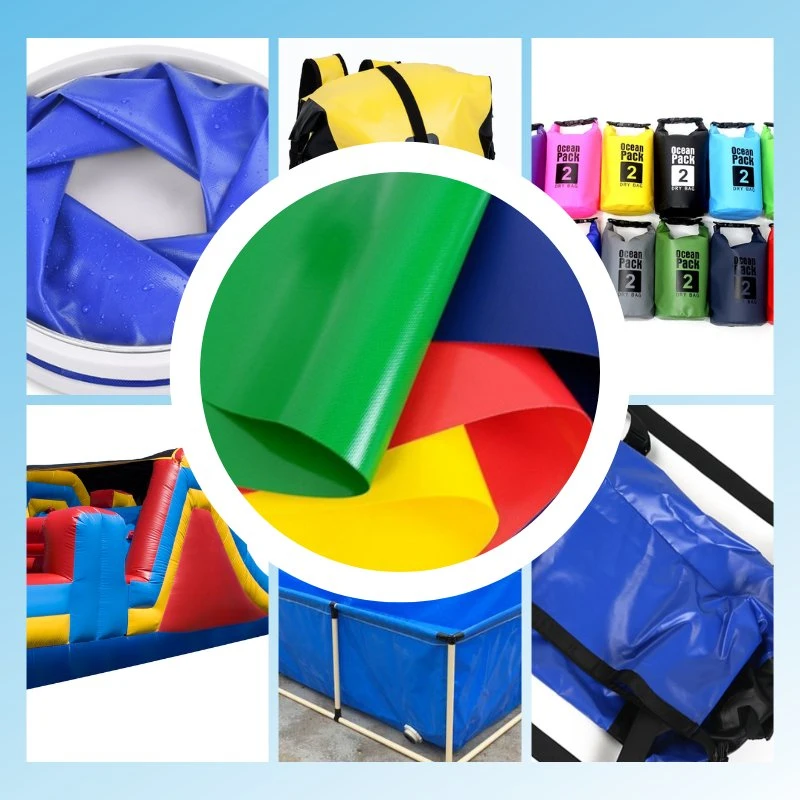

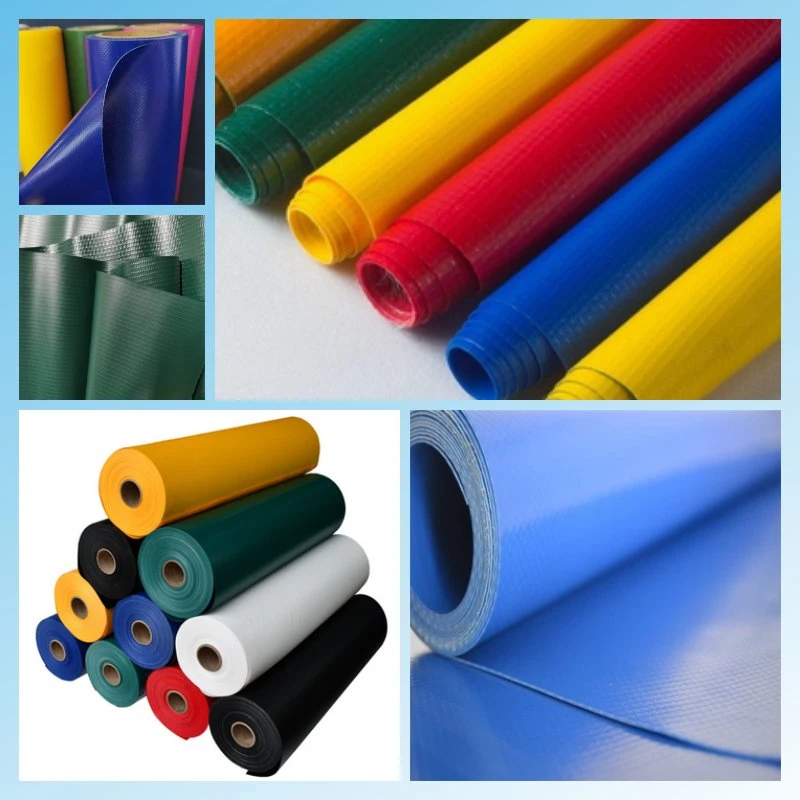

High Tensile Strength Coated PVC Tarpaulin for Tent Truck Cover used in tents, truck side curtains, inflatable toys, agriculture films, outdoor warehouse covers, mine ducts, rain and sunshine shelter, temporary storage, playground, tent, gymnasium, film structure, amusement device, carriage tent, house building.

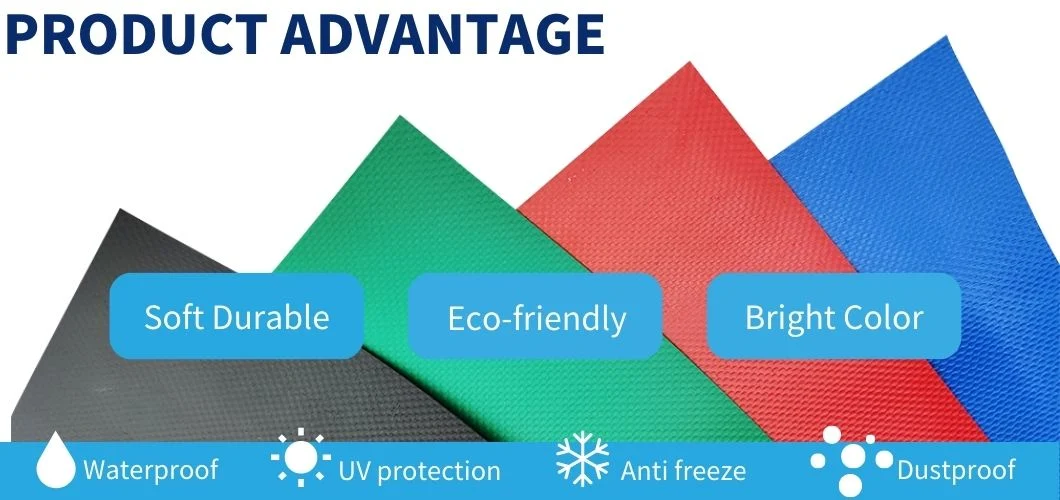

1. Laminated coating technology
2. Outstanding tearing strength
3. Flame retardant character
4. Anti-oxidant
5. Temperature resistance: -20--70
6. Weather resistant(UV, rain, fungi and frost)
